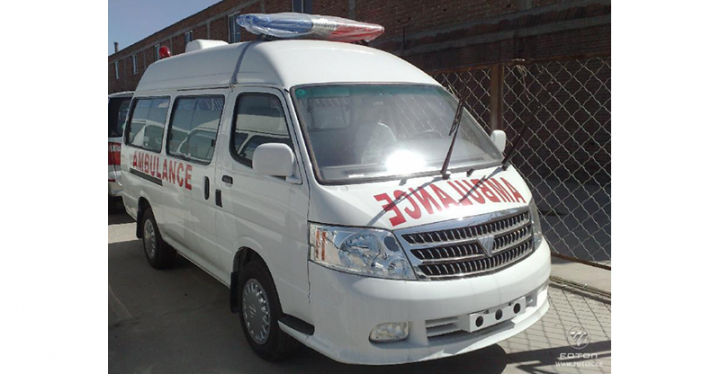

Ambulance BJ6536B1DDA-3

Brand Foton
Model BJ6536B1DDA-3
The country of manufacture China
Engine BJ493ZQ
Share
Facebook Twitter Email Pinterest linkedin WhatsApp WhatsApp Telegram Viber
  • Description
Description

Full description

Basic parameters

Product model  BJ6536B1DDA-3
Elements consisting of product Function High-grade
Normal/black window Normal window
No. of complete vehicle 6536B1DDA-03ZA43
Resources condition Official
Product line Comfortable version
Body 12style front panel/Alpha rear panel/High roof
Interior 12style Interior
Engine Model  BJ493ZQ
Fuel type Diesel
Emission standard EuropeII
displacement(ml) 2771
Engine Power(kw) 68(3600)
Max torque (N.m/rpm) 202(≤2300)
Transmission Manual
Main technical parameter
Outer dimension (mm) 5320X1690X2225
Wheelbase(mm) 2890
Front wheel track(mm) 1460
Rear wheel track(mm) 1440
Min.turning diameter(m) 12
Mass parameter
Total mass(kg) 2967
Kerb mass(kg) 1800
Loading weight (kg) (including persons) 1167
Capacity(person) 6
Power performance
Maximum vehicle speed (km/h) 118
Fuel economy
Fuel consumption(L/100km)  ≤9.1
Trafficability
Min. ground clearance(mm 160
Approach angle (°) 19
Departure angle (°) 20
Technical configuration
Front axle Independent type
Rear axle Integral type
Front suspension  Torsion bar, double arm independent suspension
Rear suspension Longitudinal leaf spring non-independent suspension
Steering gear type Rack and pinion steering gear
Brake system  Front disc,rear drum
Function configuration
Chasis system
Power-assisted steering ●
Tyre 185R14C ×
195/70R15 ●
Rim Steel ring+Cover ●
Aluminium alloy ×
Brake system Load sensing proportional valve ●
ABS ×
Body and accessory
Seat Knitted seat ●
Knitted downy seat ×
Imitation leather seat ×
Carpet assembly PVC ●
PVC+felt ×
Non-slip PVC+felt ×
Aluminium alloy ×
Windscreen wiper and Washer Front windscreen wiper ●
Front washer ●
Rear windscreen wiper ×
Rear washer ×
Rear window defrost function ×
Exterior rear-view mirror Manual ●
Electro-driven ×
Chrome plating of
Motor-driven
mirror+turn light
×
Rear under mirror ×
Door lock Mechanical lock ●
Central control lock ×
mirror+turn light
The front door window Manual glass lifter ×
Electro-driven glass lifter ●
Safety
Safety belt Three-point safety belt
for Driver and assistant
driver
●
No safety belt for
passenger
×
Two-point safety belt for
passenger
×
Reverse radar ×
Comfort
Air
conditioning
system
Front air conditioning ●
Rear air conditioning ●
Real air duct for both
sides
●
False air duct for both
sides
×
Front&rear heater Front heater ●
Rear heater ●
Acoustic equipment Radio ●
USB ×
CD ×
Medical
Equpment

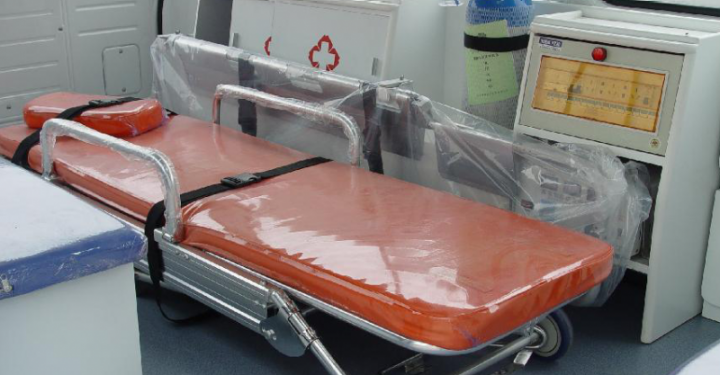

Automatic loading
stretcher
●
Oxygen cylinder (15L) ●

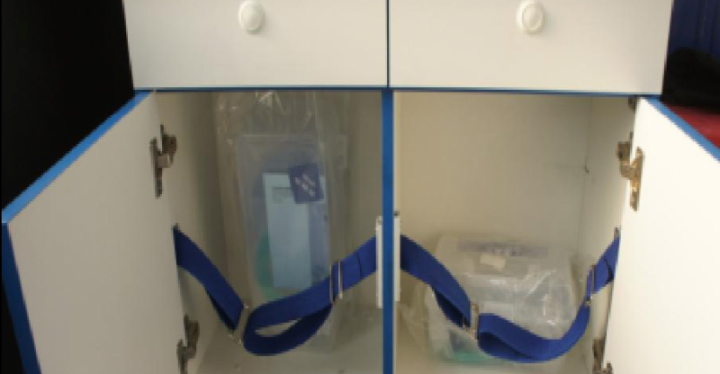

Medicine cabinet (with
resin/toughened glass
door)
●
Non-skid floor ●
Sliding hanging insulator
rack
●
Middle partition with
small windows
●
Side bench seat with belt ●
Garbage can ●

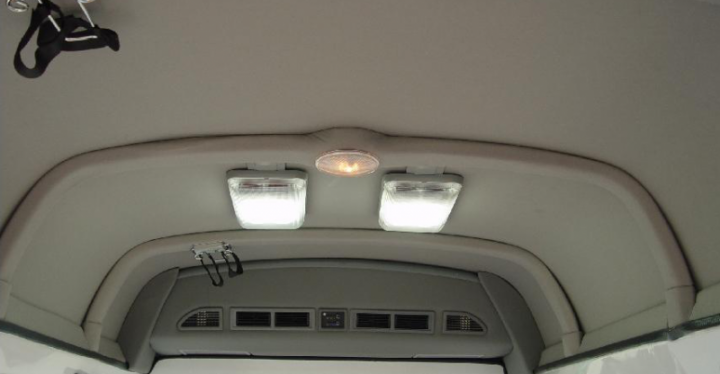

Interior illuminating
lamp
●
Fire extinguisher and
bracket (3kg)
●
Film (including that for
the back door)
●
12 V -220V DC source ●
Inverter1000W ●
Ventilating equipment ●

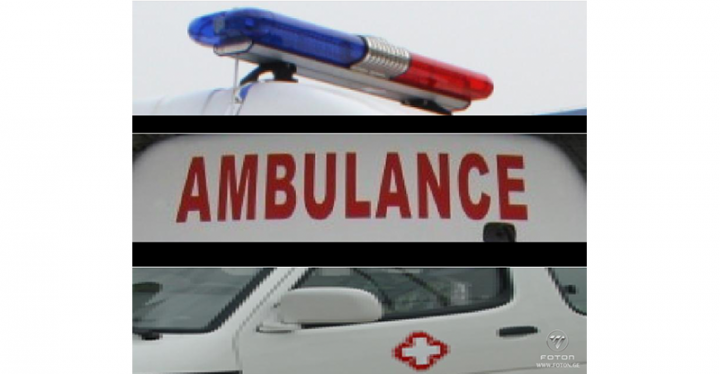

Sidelight ●
Cross logo (red) ●
Red reflective bands at
both sides
●
Front logo ●
