Truck with manipulator

Car brand / Manipulator brand Foton/Atlas
Car Model/ manipulator model BJ1356 / 190 2E/4
Country of manufacture of the vehicle / Country of manufacture of the manipulator China/ Germany
Car engine ISDe270 40 Cummins



Share
Facebook Twitter Email Pinterest linkedin WhatsApp WhatsApp Telegram Viber
  • Description
Description

Full product description

Technical characteristics of the car

Car brand Foton
Car Series EST-M
Car model BJ1356
Country of Manufacture China
Driving Type 6+2
Persons in Cab 2+1

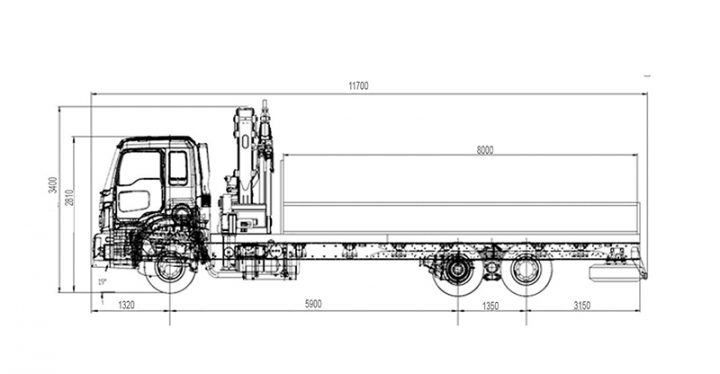

Whole Vehicle Main Parameters Overall Dimensions (LxWxH) (mm) 1170*2495*3400
Inner Dimentions (LxWxH) (mm) 8000*2300*600
Wheel Base (mm) 5900+1350
Wheel Track (front/rear) (mm)
Weight Data Curb Weight (kg) 12000
Rated Payload (kg) 20000
Gross Vehicle Weight (kg) 32000
Max speed(km/h)
Engine Model ISDe270 40 Cummins
Type  Six-cylinder, Diesel
Displacement (L) 6.7
Rated Power (hp) 198/270/1400
Max. Torque
Emission Euro IV
Gear Box Model 8JS118TC
Type
Number of gears 8+1
Suspension Front suspension/Leaf spring number Interdependent springs – 10 pcs and a telescopic shock absorber
Rear suspension/Leaf spring number Interdependent Resources, 12 units

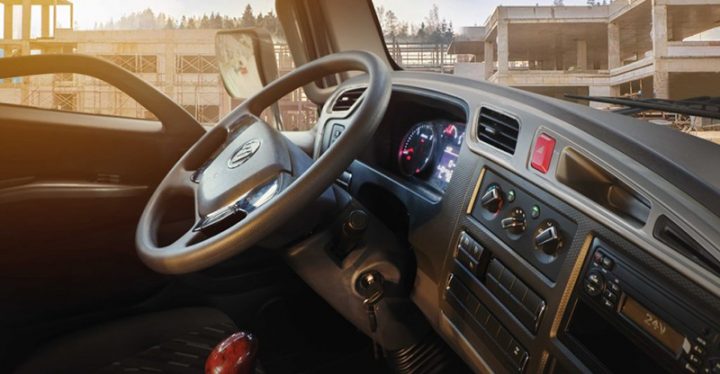

Cabin
Cabin Type M4 M (safety according to European regulation ECE R29/02)
Cabin shift Electro-hydraulic
Driver’s seat With air cushion
Number and dimensions of tires 10+1/11.00R20
Fuel Tank (L) 260

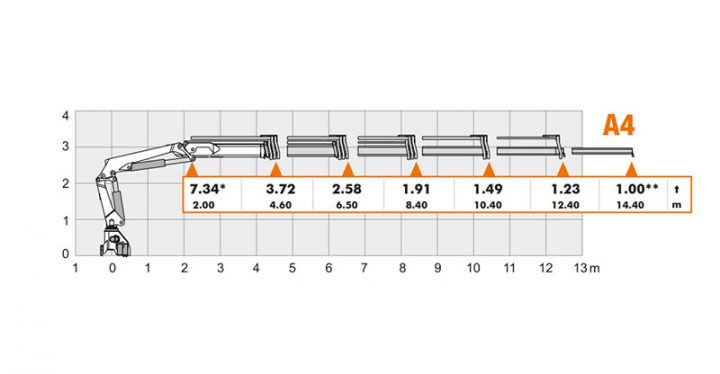

Characteristics of the crane-manipulator

Country of Manufacture Germany
Brand/Model ATLAS 190 2E/4
Maximum load capacity 7350 kg
Loader Crane Standard Eurostandard EN12999:2011
Maximum hydraulic expansion 12,50 miter
With mechanical shafts 14,40 miter
Load capacity 12.50 opening 1230 kg
Load capacity 14,50 opening 1000 kg
Angle of rotation 410 degree
Hydraulic deployment of outriggers (stabilizers) 5300 mm
Control Remote control SCANRECO with engine start/stop function;
